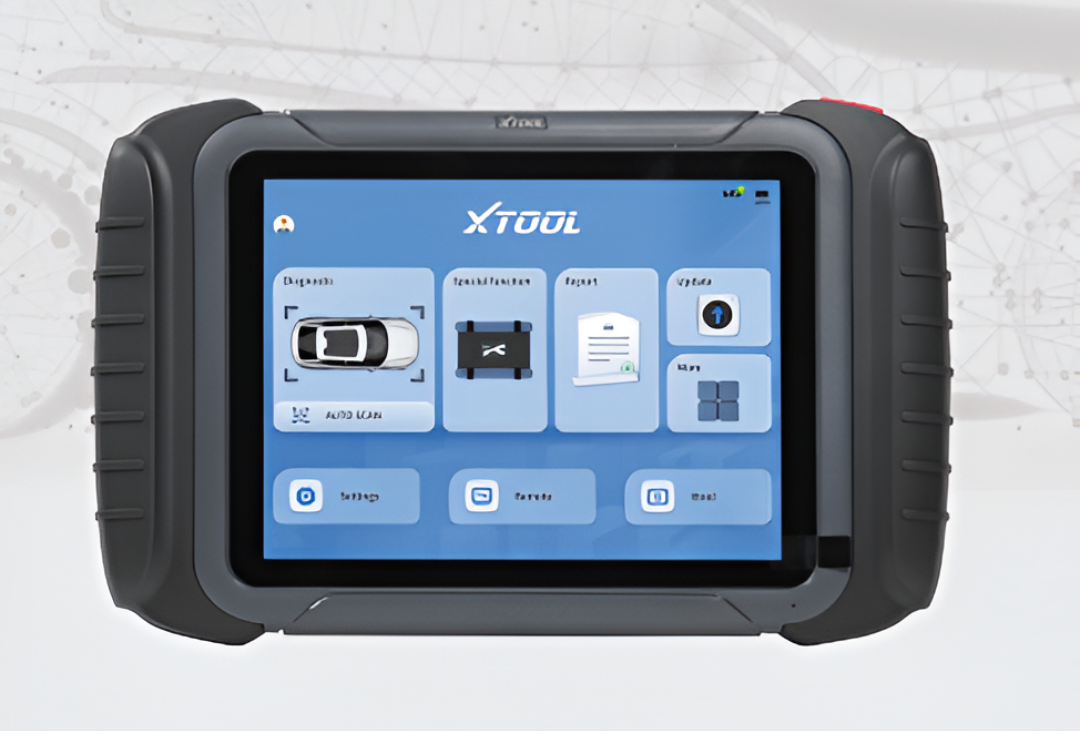

XT80

XT80 is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics,
electricians, and car maintenance shops.
Vehicles covering electric, gasoline and diesel, and hybrid vehicles in the U.S., Europe and Asia. It also supports
full system diagnostics, including reading ECU version information, reading fault codes, live data, and freeze
frames.
38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset,
EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more
than 85 brands, 10000 cars.

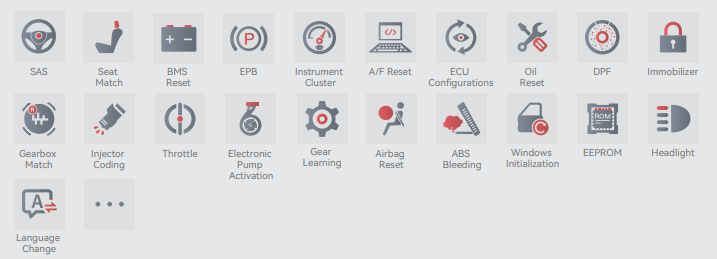

Special Function

Specification

Specification	Details
Operating System	Android 10
Processor	Quad-Core 1.50GHz
Memory	4GB RAM, 64GB ROM
Display	8-inch, 1024×768P
Camera	8.0MP AF with Flashlight
Battery	5000mAh, 7.3V
Working Voltage	9V – 36V
Connectivity	Type-C
Communication	Wired
Protocol Compatibility	CANFD, DoIP
Sensors	Gravity Accelerometer, Ambient Light Sensor
Auto Input/Output	Microphone, Speaker
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	<90%
Dimensions (L×W×H)	274 × 175 × 33.8 mm

Operating System	Android 10	Battery	5000mAh, 7.3V
Processor	4 Core 1.50GHz	Working Voltage	9 ~ 36V
Memory	4G RAM, 64G ROM	Operating Temperature	0 to 40℃
Display	8-inch, 1024×768P	Storage Temperature	-40 to 60℃
Connectivity	Type-C	Humidity	<90%
Communication	Wired	Dimension (L×W×H)	274mm × 175mm × 33.8mm
Camera	8.0 Megapixel, AF with Flashlight	Protocol Compatibility	CANFD, DoIP
Sensors	Gravity Accelerometer, Ambient Light Sensor	Auto Input/Output	Microphone, Speaker
